Working principle and characteristics of vertical packaging machine

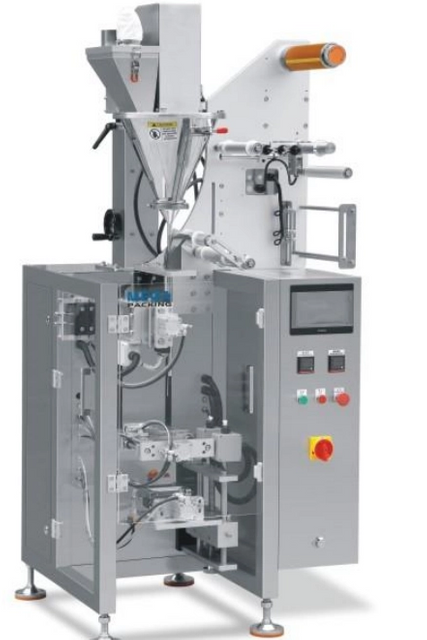

The vertical packaging machine adopts all stainless steel materials, with a generous appearance, reasonable structure, and more advanced technology. A device for stretching feed feeding materials during the packaging process. The plastic film forms a tubular shape in the film tank, and is vertically sealed at the heat sealing edge and packaged into the bag. At the same time, the horizontal sealing mechanism cuts the packaging length and position according to the color code of the photoelectric detection equipment.
The working principle of a vertical packaging machine is that the film will be placed in the bearing device, and the photoelectric detection device controlled by the tensioning device guide rod group will test the position of the mark on the packaging material. The filling tube on the surface of the film wrapping cylinder is rolled into the forming machine. The longitudinal heat sealing film, sealing tube, and tubular film are rolled into a cylindrical interface with the longitudinal heat sealing device, and then transported to the side heat sealing machine for sealing and packaging the tube. The measuring device measures the item, fills the bag with the upper filling tube, and then cuts the side heat seal and the center of the heat seal device to form a packaging unit, while forming the next bottom bucket bag seal.
Vertical packaging machines are widely used in daily life. Suitable for packaging various powders, particles, tablets, and other products. The unique feature of vertical packaging machines compared to other machines is that the conveying pipes of packaging materials are installed inside the bag making machine, and the packaging materials are arranged vertically from top to bottom.
The vertical packaging machine is mainly composed of measuring devices, transmission systems, horizontal and vertical sealing devices, collar forming machines, filling tubes, and film pulling and feeding mechanisms. The production process of vertical packaging machines: Vertical packaging machines are combined with measuring and filling machinery in the upper section. Vertical packaging machines are commonly used to package block, sheet, granular, stem, powder, as well as fluid and semi fluid materials. Its characteristic is that the feeding cylinder of the packaged material is designed on the inner side of the bag making machine, and the bag making and filling materials are carried out vertically from top to bottom.
